RJ11 Pinout and Footprint Checks Before PCB Release
RJ11 PCB release checks should verify pin mapping, footprint size, mechanical fit, and electrical routing before manufacturing. A proper review compares the connector datasheet, CAD footprint, and physical sample. For example, checking a 6P6C RJ11 footprint with 1.02 mm contact spacing, correct pin numbering, and sufficient enclosure clearance can prevent assembly failures after fabrication. A 100% footprint match before Gerber release is the goal for reliable production.
RJ11 connectors are widely used in telephone systems, access control equipment, industrial controllers, and embedded communication devices. Although the interface is simple, the PCB design process requires careful checking because the connector combines electrical contacts and mechanical positioning requirements.
Most RJ11 connectors use a 6-position modular structure, while many applications only connect 2 or 4 contacts. The unused contacts do not remove the need for accurate footprint design because the plastic housing, mounting posts, and contact arrangement still define the PCB geometry.
A connector can pass schematic checks and still fail during assembly if the footprint orientation or mechanical dimensions are incorrect.
The first release review should start with the schematic symbol. Pin numbering must match the connector manufacturer's drawing, especially because RJ11 drawings may show the connector from different viewing directions.
A typical RJ11 contact arrangement is:
| Pin | Common Use | Notes |
|---|---|---|
| 1 | Auxiliary / unused | Depends on application |
| 2 | Line connection | Used in some telephone layouts |
| 3 | Main signal | Central contact pair |
| 4 | Main signal | Central contact pair |
| 5 | Line connection | Secondary line |
| 6 | Auxiliary / unused | Depends on application |
For traditional telephone applications, pins 3 and 4 are commonly used as the main pair. However, industrial products may assign custom functions such as power, serial communication, or sensor signals. The engineer must not assume that every RJ11 design follows the same wiring method.
After confirming the symbol, the PCB footprint needs to be checked against the mechanical drawing. Connector manufacturers normally provide dimensions for pin spacing, mounting holes, body size, and board height. A difference of only 0.3 mm between the CAD footprint and the real component can create insertion problems.
The contact pitch of many modular connectors is around 1.02 mm. Through-hole versions often require drill sizes between 0.8 mm and 1.2 mm depending on the terminal design. If the drill size is too small, the connector pins may not enter correctly. If it is too large, solder coverage may decrease.
Mechanical dimensions should be reviewed from the original supplier drawing instead of relying only on third-party CAD libraries.
Many PCB libraries contain RJ11 footprints created by different users. Some define pin 1 from the top view, while others define it from the solder side. This difference can mirror the entire connector arrangement.
A recommended verification process includes:
| Review Item | Check Method |
|---|---|
| Pin numbering | Compare with datasheet drawing |
| Pad location | Measure against mechanical dimensions |
| Hole diameter | Confirm with terminal size |
| Connector outline | Match component body |
| Pin 1 marking | Add clear PCB reference |
| Mounting area | Verify enclosure clearance |

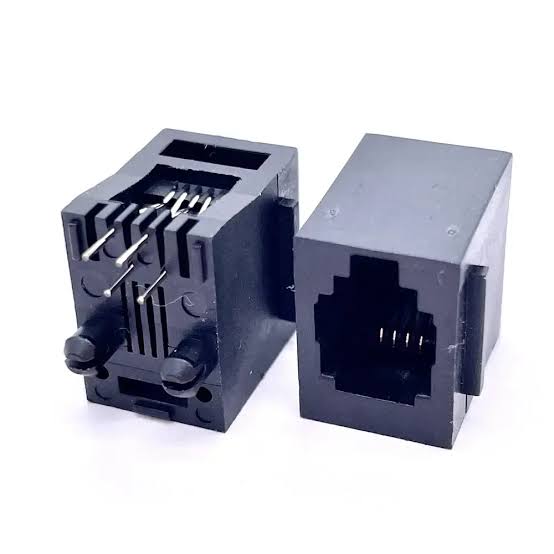

The same footprint review method applies to products using different modular jack designs. For example, the Soulin modular jack range includes RJ11 connector solutions with different mechanical configurations, requiring designers to confirm the exact part number before PCB layout.
Footprint orientation is another area that requires attention before PCB release. CAD software normally displays the component from the PCB top side, while connector datasheets may show the front mating side. These two views can create left-right reversal problems.
A practical check is to place the connector footprint on a 1:1 printed PCB drawing and physically position the connector on top. This method takes only a few minutes and can identify incorrect orientation before manufacturing.
The printed footprint method is especially useful for through-hole connectors because the component pins must match the drilled PCB holes exactly.
Electrical routing should also be reviewed after the footprint is confirmed. RJ11 interfaces usually carry low-speed signals, but external cables can introduce electrostatic discharge and transient voltage.
Protection components are normally placed close to the connector:
| Component | Function |
|---|---|
| TVS diode | Limits transient voltage |
| Common-mode filter | Reduces external noise |
| RC network | Improves signal filtering |
| PTC device | Provides current protection |
For communication applications, the routing distance between the RJ11 connector and protection devices should be minimized. A long trace between the connector and TVS diode reduces protection performance because transient energy travels through a longer copper path before reaching the protection device.
PCB layout review should also include the connector mounting area. RJ11 housings often extend beyond the PCB edge, and the cable insertion direction may require additional clearance.
Common mechanical checks include:
-
Minimum distance from PCB edge
-
Housing interference with nearby components
-
Screw or mounting post position
-
Cable bending space
-
Connector height relative to enclosure
A product enclosure designed with only the PCB outline may fail after the connector body is installed. For example, a connector height difference of 2–3 mm can prevent the PCB from fitting into the final housing.
The manufacturing file review is the last step before release. Gerber data, drill files, assembly drawings, and PCB notes should all represent the same connector version.
Typical release checks include:
| File | Inspection |
|---|---|
| Gerber layer | Pad and outline position |
| Drill file | Hole size and location |
| Solder mask | Opening size |
| Silkscreen | Pin 1 indicator |
| Assembly drawing | Component direction |
A 2024 industry manufacturing review found that connector-related PCB issues were frequently associated with library errors, incorrect footprints, and missing mechanical verification. Many of these problems occur before production because the CAD data does not match the purchased component.
RJ11 designs should also consider replacement and sourcing requirements. A connector footprint created for one manufacturer may not always fit another supplier's product, even when both parts are described as RJ11.
Important comparison items include:
| Parameter | Reason |
|---|---|
| Contact number | Determines available circuits |
| Mounting type | Through-hole or SMT |
| Shielding | Required for some environments |
| PCB orientation | Affects cable direction |
| Housing dimensions | Affects enclosure design |
For production designs, engineers should keep the connector part number fixed during PCB development. Changing the supplier after layout completion may require a new footprint review.
The safest release process compares the final component datasheet, CAD footprint, and assembled sample before manufacturing files are approved.
A complete RJ11 verification process normally includes schematic checking, footprint measurement, mechanical inspection, electrical protection review, and manufacturing file inspection. Completing these checks before PCB fabrication reduces redesign cycles and improves first-pass assembly quality.
